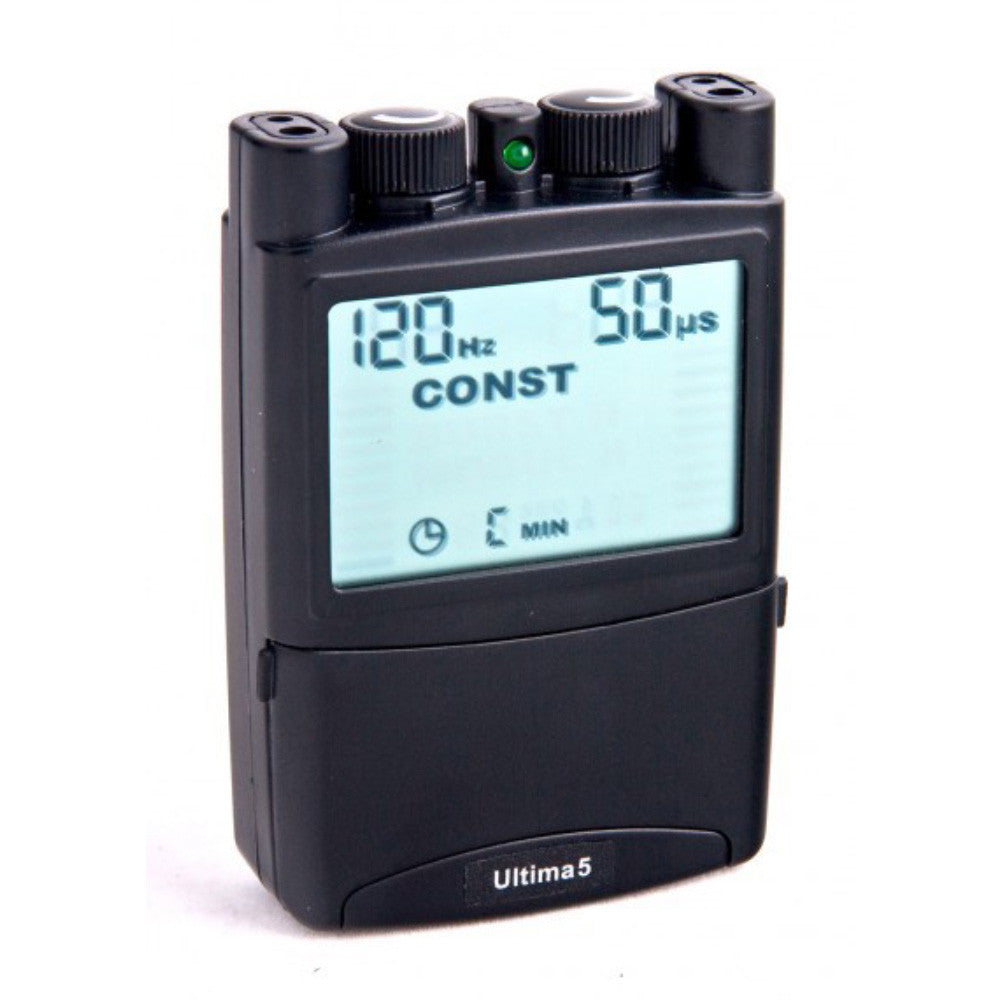

Ultima 5 Digital TENS unit

5 Modes are available

Mode A – Constant

Mode B – Burst I

Two train per second, 250ms on, 250ms off; 25 pulses within

one train, pulse width=200ìS

Mode C – Burst II

Two train per second, 250ms on, 250ms off; Pulse width & frequency are selectable

Mode D – Pulse width modulation

Pulse width modulated from 100ìS to 250ìS within 6 seconds

& then back to 100ìS in the next 6 seconds. Pulse rate is selectable,

Mode E – Pulse rate and Pulse width Modulation

Frequency increase from 50Hz to 100Hz while pulse

width decrease from 200ìS to 60ìS within 5 seconds.
